$500.00

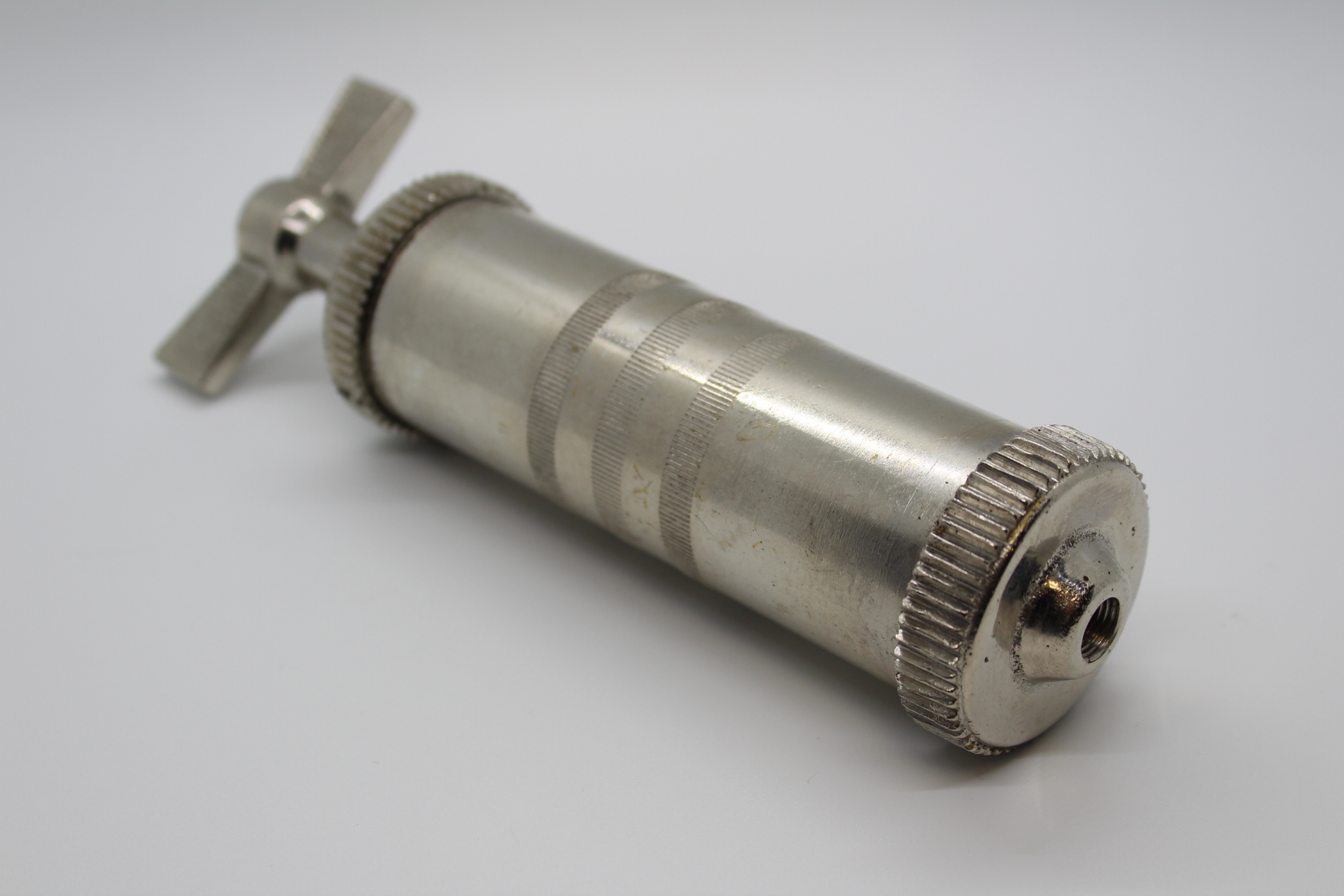

Two types of grease guns were used for the 250 series cars. The type with the lathe turned handle was appropriate for the inside plug 250s and most of the earlier cars. The very early cars probably used something similar, but perhaps from a different manufacturer. The late, outside plug 250s and other later cars used the grease gun with the flat, cast handles. Late Grease Gun for 250s and later cars with the flat, cast handle.
(Sold Individually)
Product Search: KIL-110B
The tool kits also contained a short flexible hose to be attached to the grease guns for rountine lubrication of the chassis. The early ones had a bronze woven exterior. The later ones had the brass hose plated with Cadmium. Bronze – Woven Grease Gun Hose for the early cars
(Sold Individually)
Product Search: KIL-111A
Add to cart
Ferrari used these button-type grease fittings from the very earliest cars until the 275’s. During the production of the 250 series cars some of the pieces purchased from outside suppliers used the normal snap-on type. The sealed tie rod ends are a good example showing that a lot of the later cars used both types of grease fittings. The button type grease fittings were made of brass and plated with a very thin layer of nickel. The nickel finish quickly wore off due to dust and dirt on the road plus the factory recommended 2,500 mile lubrication schedule. The button type grease fittings all used the same dimension for the shaft and head but there was a variety of thread sizes. 5 x 0.8mm: these were used on the very early cars such as the 166s.
(Sold Individually)
Product Search: KIL-100-1
Add to cart
Ferrari used these button-type grease fittings from the very earliest cars until the 275’s. During the production of the 250 series cars some of the pieces purchased from outside suppliers used the normal snap-on type. The sealed tie rod ends are a good example showing that a lot of the later cars used both types of grease fittings. The button type grease fittings were made of brass and plated with a very thin layer of nickel. The nickel finish quickly wore off due to dust and dirt on the road plus the factory recommended 2,500 mile lubrication schedule. The button type grease fittings all used the same dimension for the shaft and head but there was a variety of thread sizes. 11 x 0.75mm: Used on the clutch and brake pedal linkage it is not unusual to see both on the same car.
(Sold Individually)
Product Search: KIL-100-6
Add to cart
Two types of grease guns were used for the 250 series cars. The type with the lathe turned handle was appropriate for the inside plug 250s and most of the earlier cars. The very early cars probably used something similar, but perhaps from a different manufacturer. The late, outside plug 250s and other later cars used the grease gun with the flat, cast handles. Early Grease Gun with the Lathe Turned Handle
(Sold Individually)
Product Search: KIL-110A
